Mid Sized Excavator
Komatsu PC35MR-2
CODE 8705
DAY $  195.00
WEEK $  682.50
MONTH $ 1950.00

Tight Tail Swing - The operator can focus more on the work in front and worry less about rear swing impact in confined areas with only 3.2" / 80 mm protrusion over the tracks.
Two–Post ROPS and Top Guard Canopy:
• Each canopy meets the safety regulations, ROPS and Top guard
• Operator can keep excellent visibility
• Easy to get on and off
Larger Entrance and Foot Space - Operator can operate the machine comfortably with suspension and reclining seat.
Walk Through Type Operator Space - The operator can get on and off easily from both sides thanks to larger foot space and two–post canopy.

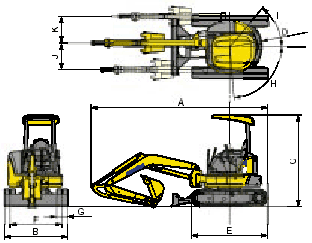

A. Overall length 15'11" 4850 mm
B. Overall width 5'9" 1740 mm
C. Overall height 8'4" 2530 mm
D. Tail swing radius 3'1" 950 mm
E. Crawler length 6'11" 2105 mm
F. Track gauge 4'9" 1440 mm
G. Track shoe width 11.8" 300 mm
H/I. Boom swing angle   LH85/RH50
J/K. Bucket offset LH585/RH845 LH1'11"/RH2'9"

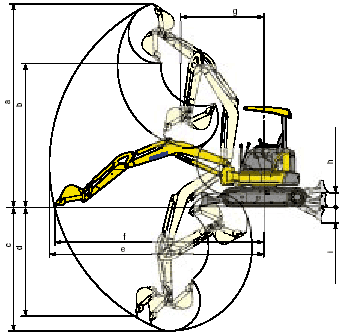

a. Max. digging height 16'5" 5010 mm
b. Max. dumping height 11'7" 3530 mm
c. Max. digging depth 10'5" 3170 mm
d. Max. vertical digging depth 8'11" 2720 mm
e. Max. digging reach 17'7" 5360 mm
f. Max. digging reach at ground level 17'2" 5225 mm
g. Min. swing radius 6'10" 2080 mm
g. Min. swing radius
(When boom swing)
5'3" 1590 mm
h. Max. blade lift 1'2" 360 mm
i. Max. blade depth 1'3" 390 mm
