MACHINE

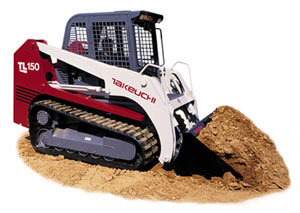

SPECIFICATIONS — TL150 |
|
|
DIMENSIONS & WEIGHT |
ENGINE |
|
Operating Weight (lbs.) |
10,902 |
Make/ Model |
Yanmar 4TNV106T |
|
Overall Width Without Bucket |
73.2" |
Horsepower/ RPM (SAE 1349 gross) |
97 / 2200 |
|
Overall Height |
91.3" |
Maximum Torque (ft.-lb./ rpm) |
291 / 1400 |
|
Overall Length With Bucket |
154.8" |
Cylinders/ CID |
4 / 269 |
|
Front Clearance Radius With Bucket |
95.8" |
Engine Lubrication (qt.) |
14.8 |
|
Rear Clearance Radius |
68.7" |
Cooling System (qt.) |
16 |
|
Angle Of Departure |
29.5° |
Fuel Tank Capacity (gal.) |
28.5 |
|
Maximum Lift Height To Bucket Pin |
126.1" |
Fuel Consumption (65% of full load)gal./ hr. |
3.7 |
|
Dump Height Fully Raised |
95.7" |
Electrical System (volt/ amp) |
12 / 60 |
|
Max. Dump Angle Fully Raised |
38° |
Noise Level at Operator's Ear (d.b.a.) |
|
|
Max. Bucket Rollback At Ground Level |
30° |
|
|
|
Reach Fully Raised |
38.8" |
HYDRAULIC SYSTEM |
|
|
Hydraulic Tank Capacity (gal.) |
16.9 |
|
PERFORMANCE |
Auxiliary Hydraulic Flow (gpm) |
23.4 |
|
Tipping Load (lbs.) SAE 732 |
7056 |
System Operating Pressure (psi) |
2986 |
|
Operating Capacity (lbs.) *SAE
J818 |
2470 |
|
|
Breakout Force (lbs.)
Bucket Cylinders |
8692 |
UNDERCARRIAGE |
|
Breakout Force (lbs.)
Lift Arm Cylinders |
8549 |
Traction Motor Type |
Piston |
|
CYCLE TIME |
Traction Drive Type |
Planetary |
|
Raise - Full Load (seconds) |
4.8 |
Traction Force (lbs.) |
13770 |
|
Lower - No Load (seconds) |
3.1 |
Traction Brake Type |
Friction |
|
Dump - Full Load (seconds) |
3.3 |
Track Rollers (per side) |
6 |
|
Curl - No Load (seconds) |
2.1 |
Track Type |
Rubber Crawler Belt |
|
BUCKET |
Track Width |
18" |
|
Width |
80" |
Track Ground Contact Length |
62.9" |
|
Capacity SAE Heaped (cu. ft.) |
24 |
Ground Pressure (psi) |
4.3 |
|
*
Operating capacity of
track loader to be rated according to SAE J818 at no more than 35%
of tipping load |
Travel Speed (mph) |
5.0 / 6.9 |
|
Minimum Ground Clearance |
13.5" |
